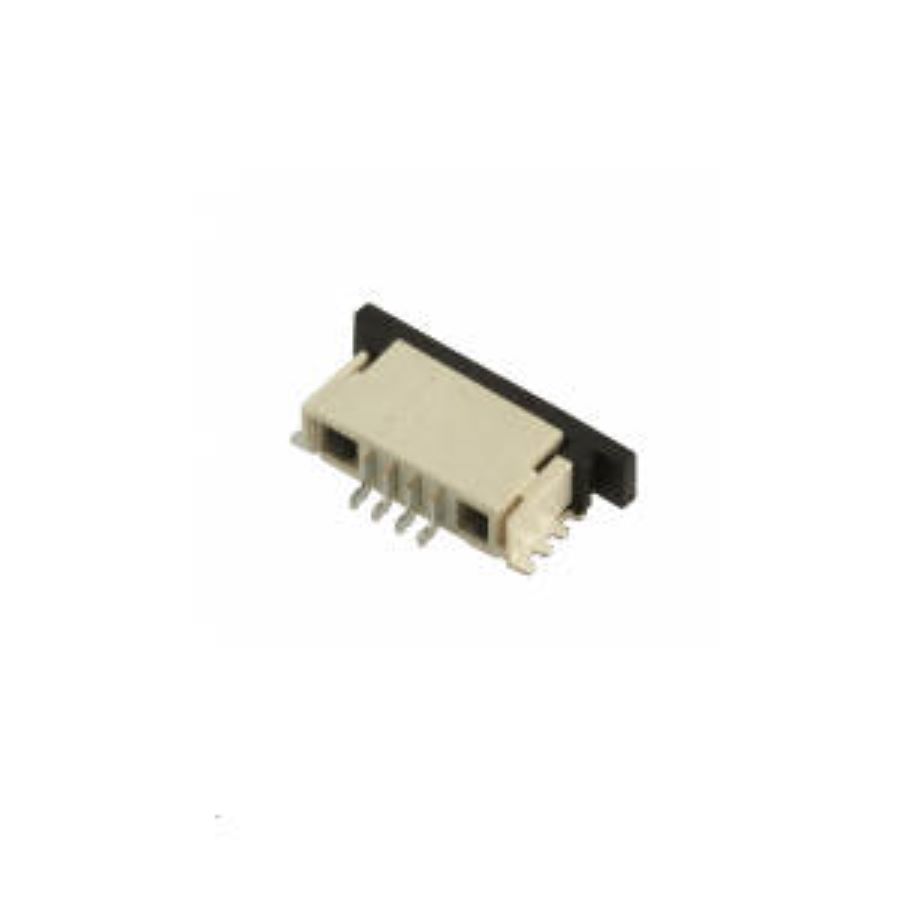

84952-4
Manufacturer:
TE Connectivity
Mfr.Part #:
84952-4
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:4 1 A 200 V
| Parameter | Value |
|---|---|
| Length | 11.91768 mm |
| Width | 6.54 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.56 mm |
| Material | Thermoplastic |
| Packaging | Reel |
| Voltage Rating | 200 V |
| Depth | 6.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 200 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Bottom |
| Max Voltage Rating (AC) | 200 V |
| Contact Current Rating | 1 A |
| Housing Color | Natural |
| Plating | Tin |
| Body Plating | Tin |
| Plating Thickness | 2 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| PCB Mount Retention | With |
| PCB Mount Alignment | Without |
Stock: 12
Distributors
pcbx
pcbxUnit Price$0.57984
Ext.Price$0.57984
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57984 | $0.57984 |
| 10 | $0.56640 | $5.66400 |
| 25 | $0.56281 | $14.07025 |
| 50 | $0.55925 | $27.96250 |
| 100 | $0.55571 | $55.57100 |
